WQ40-12-3QG
產品描述
使用條件/Condition of usage
◎ 以葉輪中心為基準，潛入水下深度不超過5米;
◎ 輸送介質溫度不超過40°C;
◎ 輸送介質的運動黏度為: 7x 10-7~23x10-6m²/s;
◎ 輸送介質的密度最大為1.2x10kg³/m³。
用途與特點 / Function and Feature

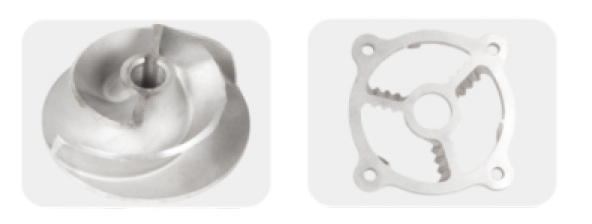

WQ型污水切割泵切割部分具有獨特的螺旋式結構及帶鋒利刀口設計。在保證水利性能的高效且超過同類產品的前提下，又具有切割能力，保證稻草，棉布，尿不濕，手套等廢棄物切碎后排出的優越切割功能。
◎ WQ為切割型法蘭污水排污泵
◎ 以輸送污水污物為目的
◎ 便拆式刀盤設計

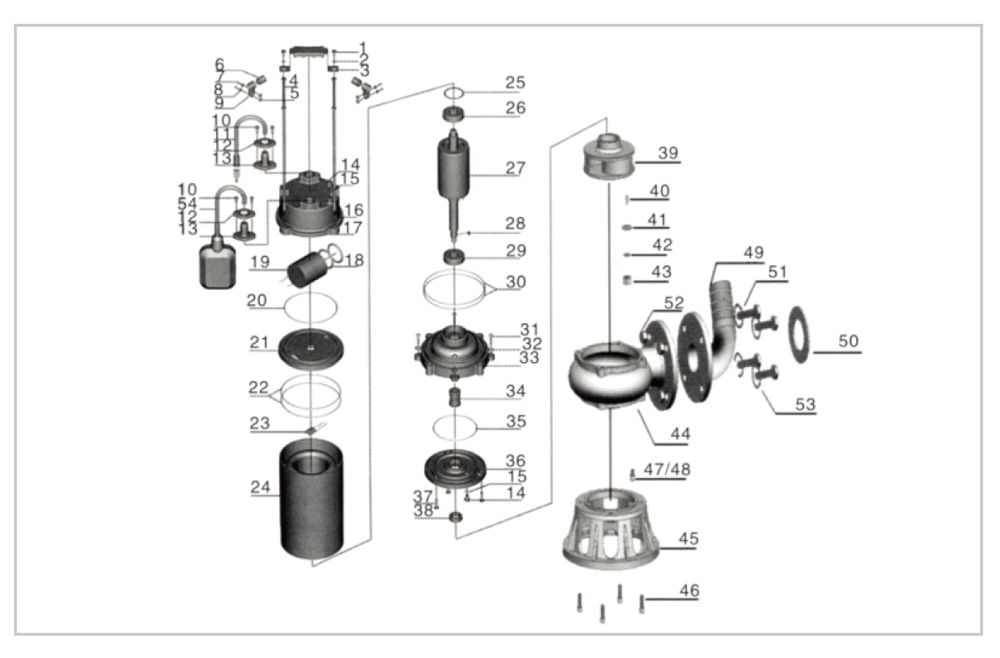

DIAGRAM分解圖 (For the reference of purchasing spare parts供選購配件時參考)
| NO. | DESCRIPTION |
| 1 | Bolt |
| 2 | Washer |
| 3 | Handle |
| 4 | Bolt |
| 5 | Nut |
| 6 | Protector |
| 7 | Screw |
| 8 | Washer |
| 9 | Cable presser |
| 10 | Screw |
| 11 | Cable |
| 12 | Flange |
| 13 | Cable protector |
| 14 | Bolt |
| 15 | "O" ring |
| 16 | Stretching washer |
| 17 | Capacitor cover |
| 18 | "O" ring |
| 19 | Capacitor |
| 20 | "O" ring |
| 21 | Motor stator |
| 22 | "O" ring |
| 23 | Thermal protector |
| 24 | Motor stator |
| 25 | Undulated washer |
| 26 | Ball bearing |
| 27 | Rotor |
| NO. | DESCRIPTION |
| 28 | Key |
| 29 | Ball bearing |
| 30 | "O" ring |
| 31 | Screw |
| 32 | Stretching washer |
| 33 | Connection part |
| 34 | Mechanical seal |
| 35 | "O" ring |
| 36 | Oil chamber cover |
| 37 | Bolt |
| 38 | Oil seal |
| 39 | Impeller |
| 40 | Key |
| 41 | Washer |
| 42 | Spring Washer |
| 43 | Nut |
| 44 | Pump Body |
| 45 | Scution Feet |
| 46 | Bolt |
| 47 | Bolt |
| 48 | O-Ring |
| 49 | Outlet Connector |
| 50 | Rubber Ring |
| 51 | Bolt |
| 52 | Nut |
| 53 | Washer |
技術參數 / TECHNICAL DATA
| Model 型號 |
Power 功率 (W) |
Outlet Diameter 出水口徑 (mm) |
Voltage 電壓 (V) |
Rated Flow 額定流量 (L/min) |
Rated Head 額定揚程 (m) |
| 80WQ40-12-3QG | 3000 | 80 | 380 | 40 | 12 |
